10 Spline 6 Level 39*44 Hub 12 Inch Clutch TA750.211 For Foton Tractor 704 754

Brand Name : SY

Model Number : SY-FT-12

Place of Origin : China

MOQ : 5

Price : USD 134-148 set

Payment Terms : T/T, L/C

Supply Ability : 60 set per day

Delivery Time : 5 days

Packaging Details : paper carton

color : silver

spline : 10

hub : Φ39*45

Overall diameter : 310mm

weight : 36kg

OEM no. : TA750.211A

fitment : Foton lovol

friction : cerametallic

Thickness : 9

Contact Now

made in China spare part TA750.211 for foton tractor 704 754 12" spline 10 pad 8 level 6 hub 39*44 with pto disc

One of our most popular product in oversea market

The abilities of one of the top 5 manufacturer in China
Skillful worker and long experience in this field for presenting the cost-effecient and qualitified product
In North and Middle America,South-east Asia,We have set the footprint

Excellent facilities of tractor industry and transportation position

10 Spline 6 Level 39*44 Hub 12 Inch Clutch TA750.211 For Foton Tractor 704 754

A tractor which you want to walk through smoothly, so you need an excellent and stable transmission system inclucde the clutch,bearing and shaft,that is also what we work hard to deliver,a reliable matchful clutch can enchance the power of the work and make it easier and comfortable

Well matching the transimssion system of John deere
The cerametallic pad has better resistence character
Damping spring to reduce the impact of engaging
Double action for operating the walking and working system
Reliable and long cooperation supplier ensure the final assembly and nice price

Clutch 12"
OEM no	TA750.211
Size	353514
Weight	36Kg
Level	6
Spline	10

The clutch disc fit for the assembly

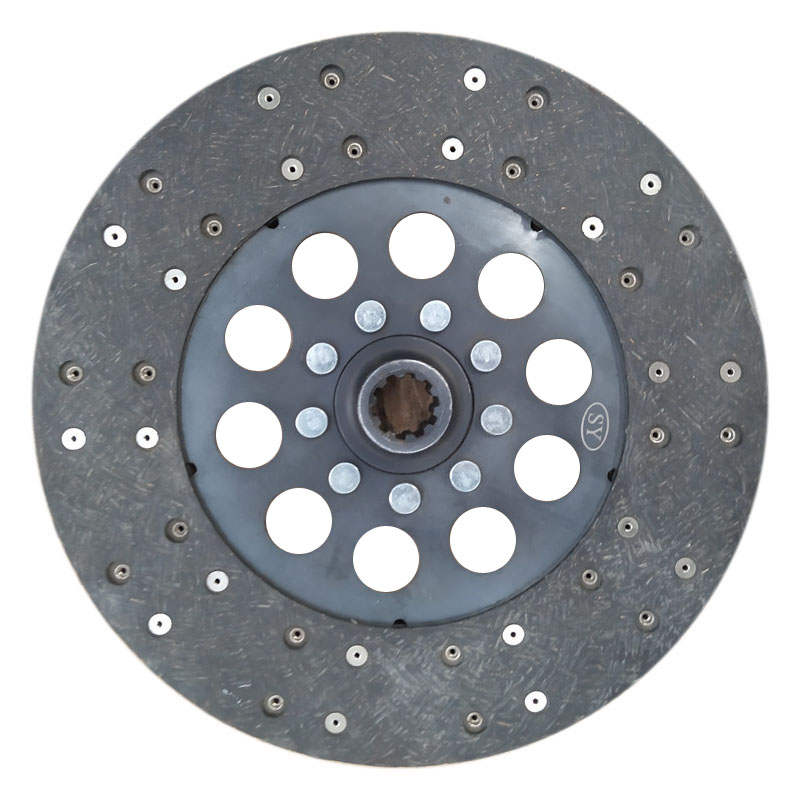

Clutch disc 12"
OEM no.	TA750.211.300T
O.D	310mm
Weight	1.7Kg
Hub	Ф40*45
Spline	16
Friction material	Cerametallic
No. of Pad	8
Thickness	9.5

Clutch disc PTO 12"
OEM no.	TA750.211A.200
O.D	310mm
Weight	1.7Kg
Hub	Ф40*45
Spline	16
Friction material	Cerametallic
No. of Pad	8
Thickness	9.5

The diaphragm

6: Housing 7: Clutch disc 8: plate 12 : Belleville washer 14: Plate 15: Disc PTO

Other choice for clutch disc PTO :

Clutch disc 12"
OEM no.
O.D	310mm
Weight	1.2Kg
Hub	Ф24*28
Spline	10
Friction material	Organic/Cerametallic
No. of Pad
Thickness	9

Related part

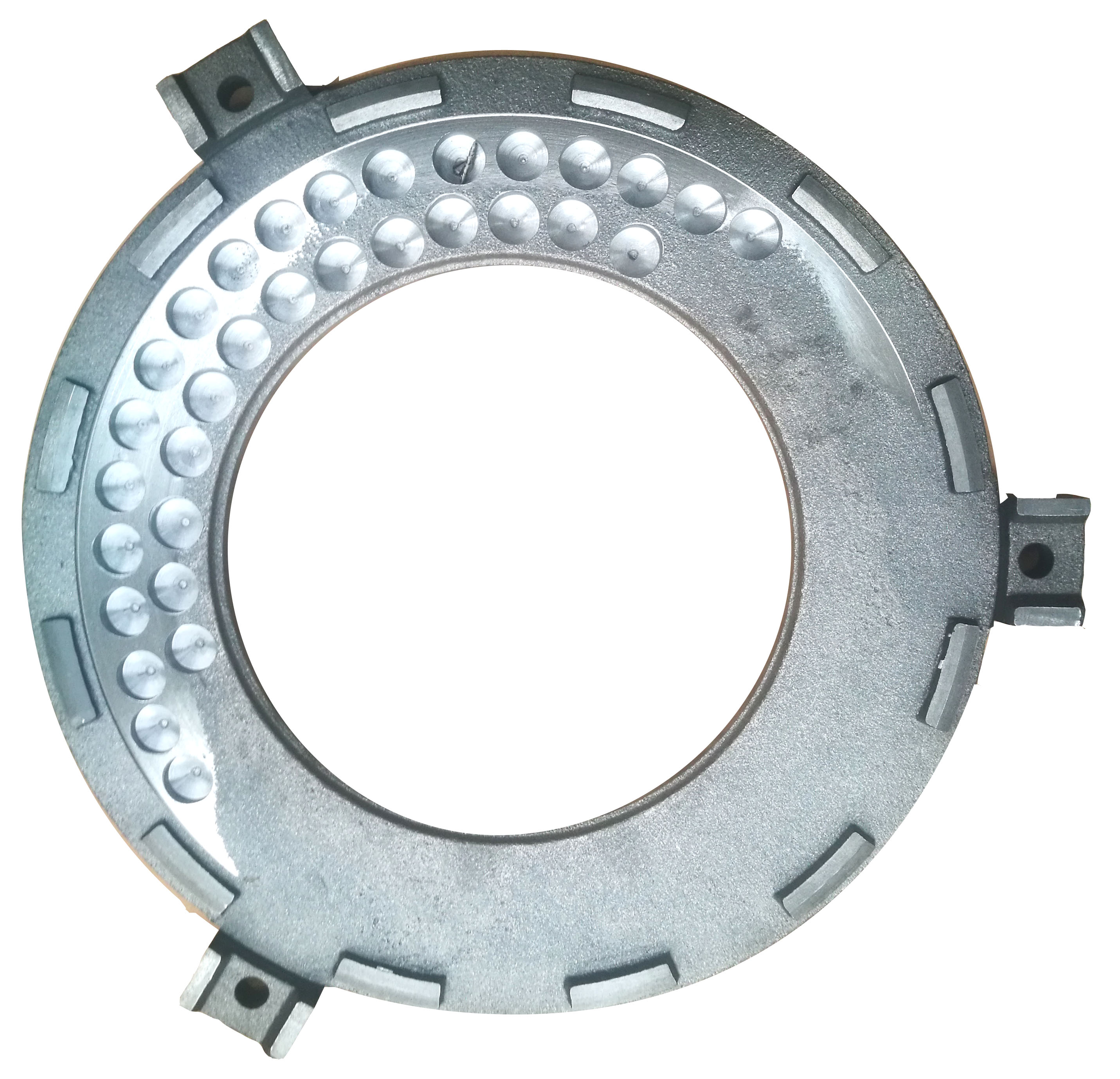

Plate

OEM : HH100-103

Plate

OEM: TA750.102

Belleville washer

OEM: TA750.104

Where is this product popular?

In South-east Asia,Africa and some parts of Europe,you can find this

Are there any others product also popular?

Some others product for Foton 504

Clutch 10"
OEM no	TB550.211A
Size	282811
Weight	23Kg
Level	6
Spline	18
